Built around the confirmed duty

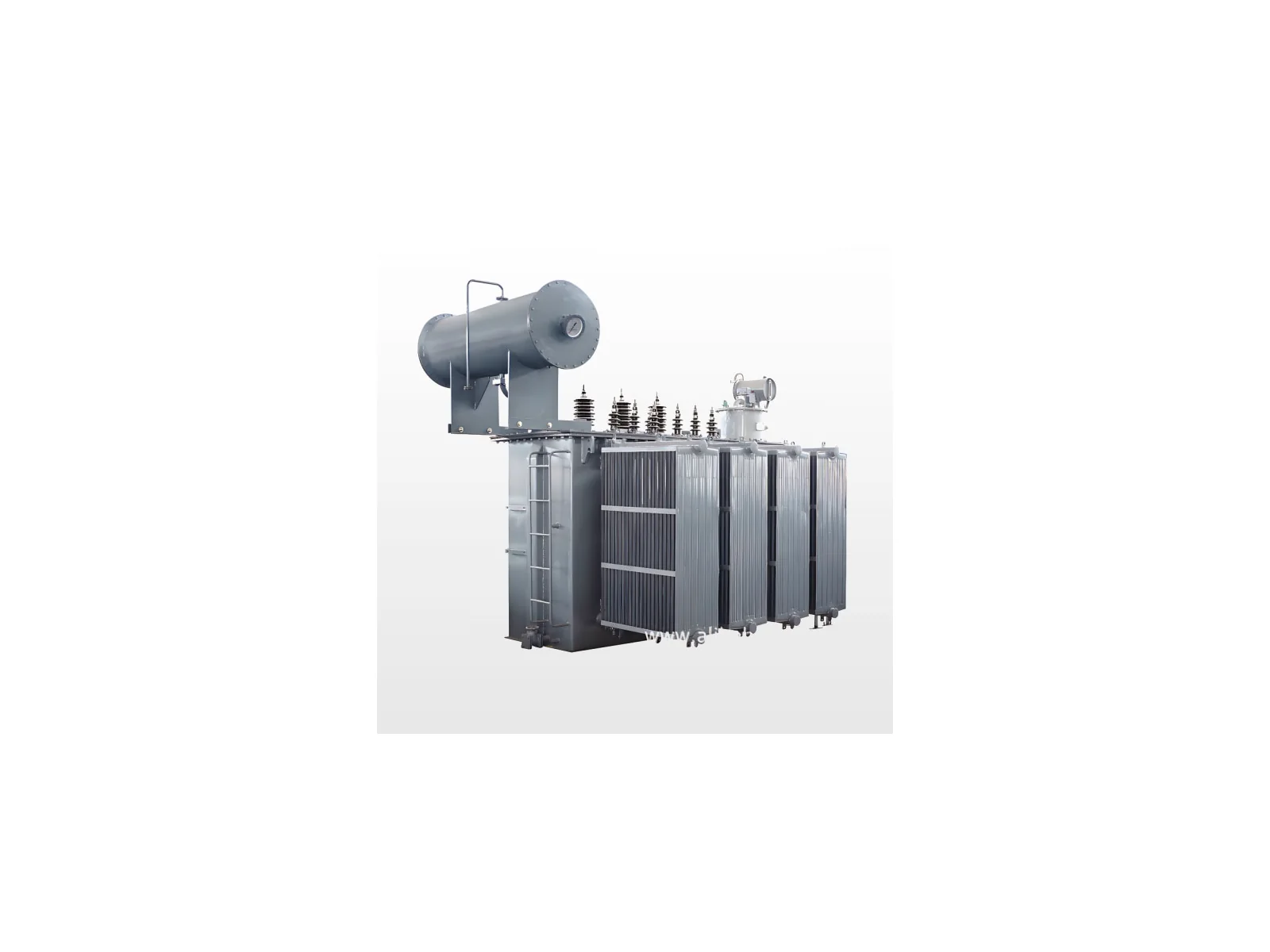

The official product page describes an oil-immersed transformer using insulating oil for both insulation and cooling. The stated construction includes the core, windings, insulation, tapping device, tank, conservator, cooling equipment, bushings and gas relay. The source identifies vacuum drying, vacuum oil filtration and filling as manufacturing steps.
Working principle
The magnetic core transfers energy between windings, while transformer oil provides dielectric insulation and circulates heat to the tank and cooling surfaces.
Power and transmission equipment selection is based on power or torque, speed, load profile, service factor, electrical supply, mounting, environment, efficiency and integration requirements.
Core features
- Transformer oil provides insulation and heat transfer
- Vacuum drying, oil filtration and filling process
- Source-described insulation, cooling, reliability and service-life benefits
