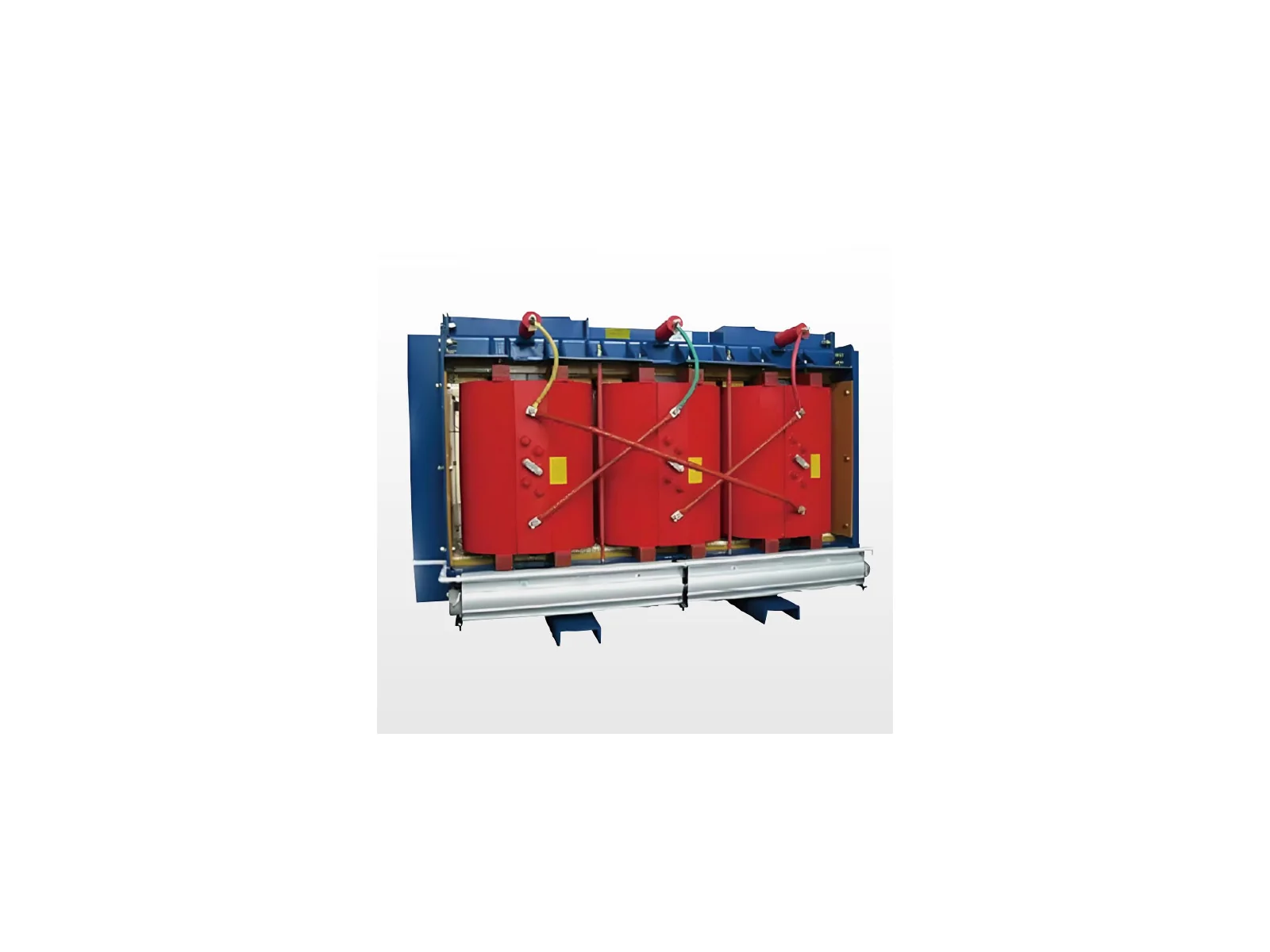

Amorphous Alloy Dry-Type Transformer full equipment view 1 / 2
Full equipment view
Amorphous Alloy Dry-Type Transformer (PWR-026)Item PWR-026

Amorphous Alloy Dry-Type Transformer

非晶合金干式变压器

Dry-type distribution transformer with an amorphous-alloy core for reduced no-load loss and current.

Project-specific configurationOnly sourced values are shown. GoEastAI confirms remaining parameters during technical review.
Request this equipment Ask a question

Manufacturing source: Baoding Zhongyi Electric Group Co., Ltd. — Supplier Profile

Equipment overview

Built around the confirmed duty

The official source describes an amorphous-alloy magnetic core intended to reduce no-load loss and no-load current compared with a conventional silicon-steel core. The page states approximately 75% lower no-load loss and about 80% lower no-load current for the cited design comparison.

Working principle

The transformer uses an amorphous-alloy core to reduce core losses during energized no-load operation while transferring electrical energy between dry insulated windings.

Power and transmission equipment selection is based on power or torque, speed, load profile, service factor, electrical supply, mounting, environment, efficiency and integration requirements.

Core features

  • Amorphous-alloy magnetic core
  • Reduced source-stated no-load loss
  • Designed for efficient distribution service
Technical parameters

Reference specification checklist

Use these common industrial selection fields to prepare the inquiry. They are not a manufacturer datasheet or guaranteed performance values.

Source-supported dataValues currently supported by supplied material
ParameterConfirmed valueBasis
Core materialAmorphous alloyOfficial product page
No-load loss reductionApproximately 75 %Supplier comparison on official product page
No-load current reductionApproximately 80 %Supplier comparison on official product page
Planning reference

Parameters to confirm before quotation

Final values remain subject to supplier technical review.

Swipe horizontally to view all parameter columns.

ParameterReference settingTypical unitSelection note
Rated power / torqueContinuous and peak dutykW / N·mInclude starting and overload requirement
Input / output speedProcess requirementr/minOperating range, ratio and direction as applicable
Electrical supplyDestination-specificV / Hz / phaseVoltage tolerance, starting and harmonic limits
Load profile and service factorRequired—Hours, starts, shock, inertia and reversing duty
Protection and environmentSite design basisIP / °CAmbient, altitude, dust, moisture and hazardous area
Mounting and shaft interfaceConfirm drawingmmFrame, flange, foot, shaft, key and coupling details
Efficiency / insulationProject targetIE class / classEfficiency, insulation, cooling and temperature rise
Control and monitoringLocal / VFD / plant integrated—Sensors, protection, communication and condition monitoring
Application and configuration

Build the inquiry around the real project

Use the product type as the starting point, then confirm service conditions, options, documentation and delivery requirements.

01

Typical applications

Urban and rural distribution-network upgradesLow-load-factor distribution sitesEnergy-efficiency retrofit projects
02

Materials and options

  • Winding conductor, core, insulation and enclosure materials are confirmed for the selected design.
  • Corrosion protection and environmental protection level are selected for the installation site.
  • Voltage ratio, capacity, vector group, impedance and tapping arrangement to be confirmed.
  • Monitoring, protection, enclosure, cable interfaces and accessories to be confirmed.
03

Standards and documents

  • Applicable national, IEC and destination requirements are confirmed during technical review.
  • Routine, type and special test scope is agreed in the quotation.
  • Manufacturer and model confirmation
  • Technical datasheet and dimensional drawing
  • Inspection, certificates and manuals
Supply and support

Delivery, packing and after-sales

Final scope, responsibilities and timing are confirmed in the quotation.

04

Delivery

  • Manufacturing schedule, Incoterm and shipment scope are confirmed after technical review.
  • Final delivery timing depends on the confirmed rating, configuration, testing and destination.
05

Packing and shipping

  • Export packing and moisture protection are selected for the final dimensions and transport route.
  • Bushings, instruments, loose parts and document packs are protected and identified for shipment.
06

After-sales

  • Installation guidance, commissioning support and spare-parts scope are confirmed in the quotation.
  • Warranty conditions and response responsibilities are agreed before order placement.
