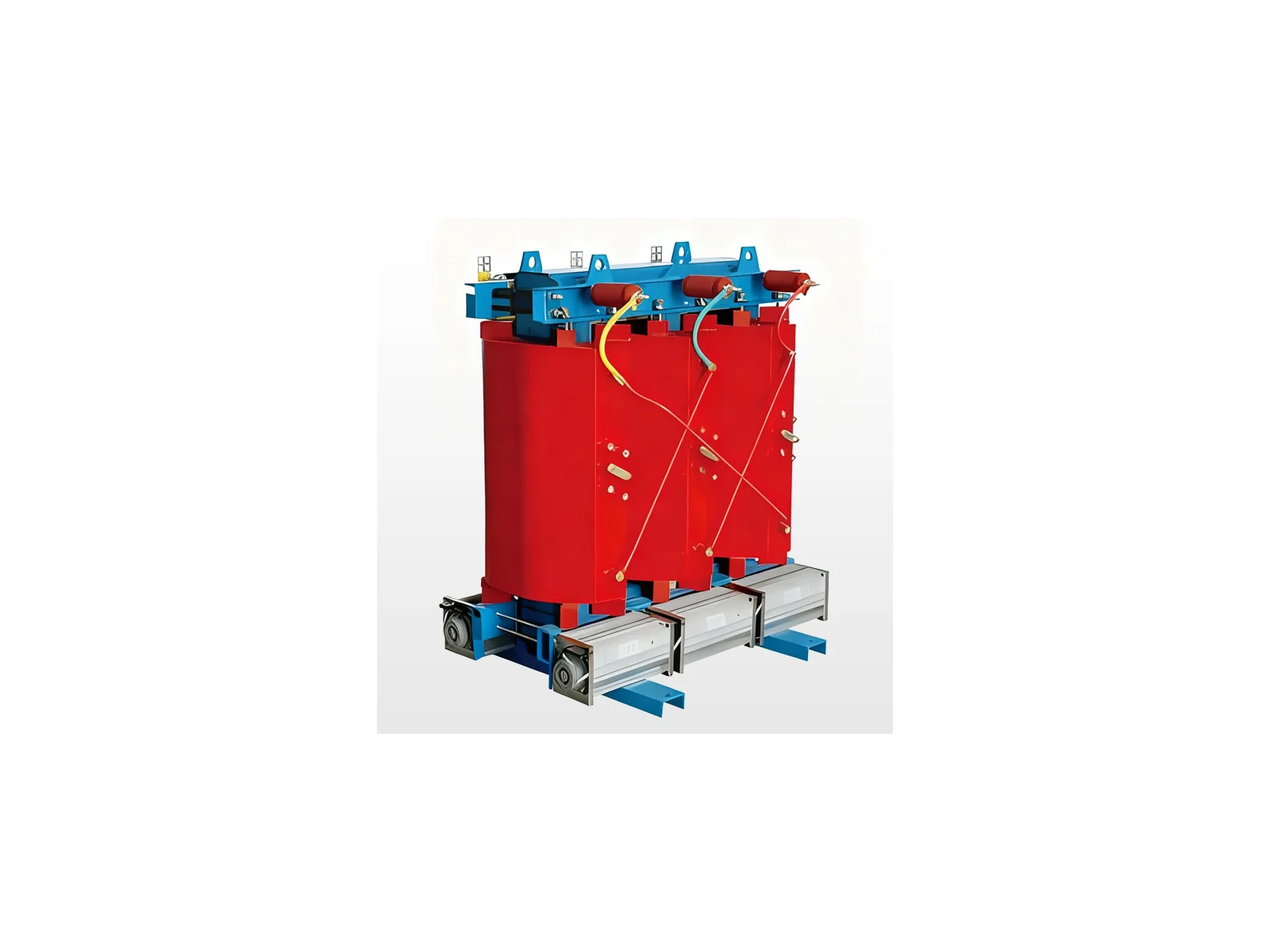

Dry-Type Transformer full equipment view 1 / 2
Full equipment view
Dry-Type Transformer (PWR-023)Item PWR-023

Dry-Type Transformer

干式变压器

SCB-series epoxy-cast dry-type transformers for 6, 10, 35 and 110 kV systems, with source-stated capacity up to 50,000 kVA.

Project-specific configurationOnly sourced values are shown. GoEastAI confirms remaining parameters during technical review.
Request this equipment Ask a question

Manufacturing source: Baoding Zhongyi Electric Group Co., Ltd. — Supplier Profile

Equipment overview

Built around the confirmed duty

The official product page identifies SCB18, SCB14, SCB13, SCB12, SCB11 and SCB10 epoxy-resin cast dry-type transformers. Copper wire or foil windings are vacuum cast and cured in epoxy resin. The source describes F- or H-class insulation, optional winding-temperature monitoring, fan control, alarm, trip and remote-monitoring interfaces.

Working principle

The magnetic core transfers electrical energy between electrically isolated windings. The cast-resin insulation system supports dry operation without transformer oil, while natural or forced-air cooling removes winding heat.

Power and transmission equipment selection is based on power or torque, speed, load profile, service factor, electrical supply, mounting, environment, efficiency and integration requirements.

Core features

  • Epoxy-resin vacuum-cast winding structure
  • Temperature display, fan control, alarm and trip options
  • Source-described fire-safe, compact and non-polluting configuration
Technical parameters

Reference specification checklist

Use these common industrial selection fields to prepare the inquiry. They are not a manufacturer datasheet or guaranteed performance values.

Source-supported dataValues currently supported by supplied material
ParameterConfirmed valueBasis
Model seriesSCB18 / 14 / 13 / 12 / 11 / 10Official product page
Voltage classes6 / 10 / 35 / 110 kVOfficial product page
Capacity rangeUp to 50,000 kVAOfficial product page
Insulation classF or HOfficial product page
Energy-efficiency referenceGB 20052-2020Official product page
