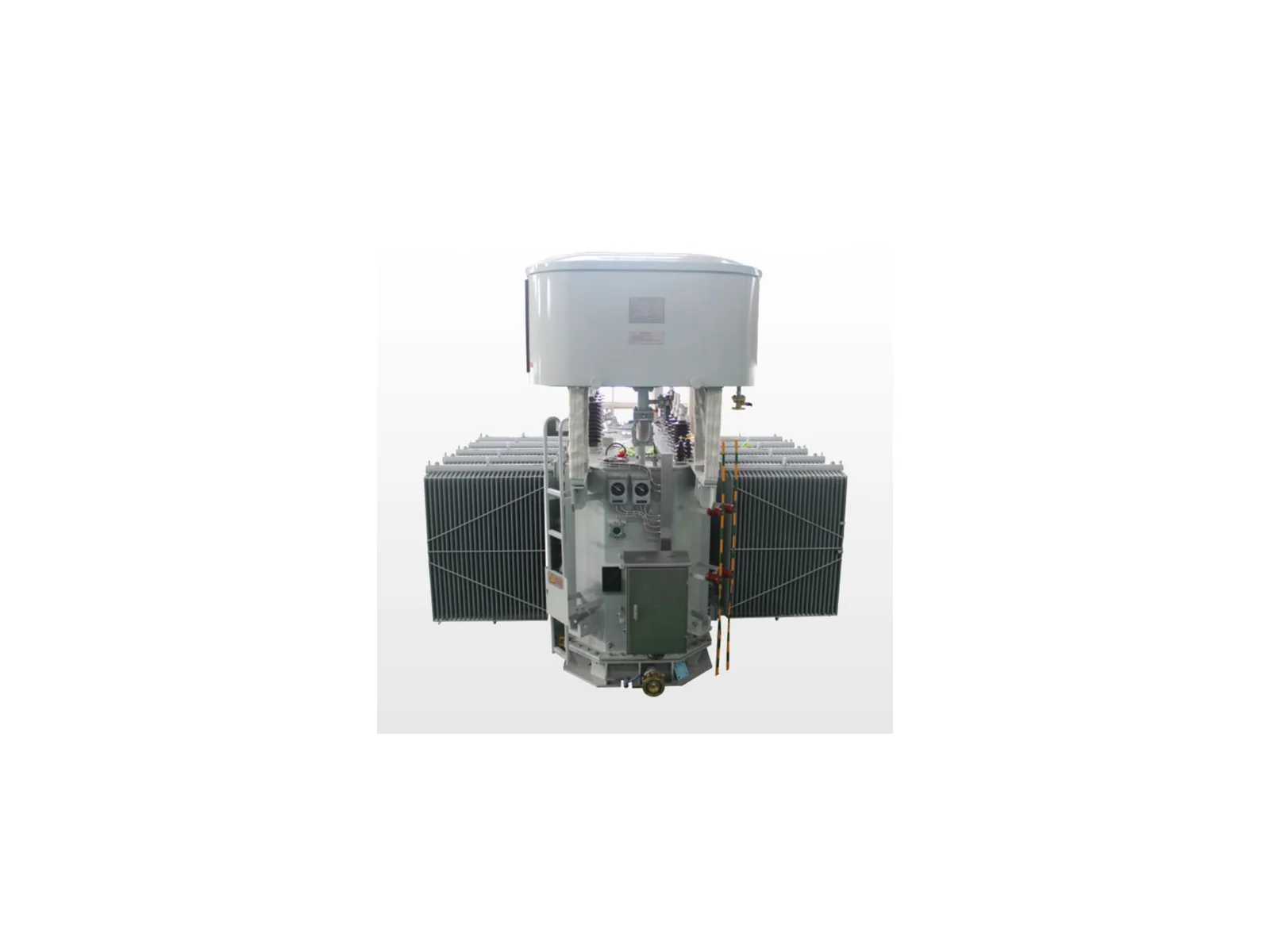

6/10/35/110 kV Tap-Changing Power Transformer full equipment view 1 / 2
Full equipment view
6/10/35/110 kV Tap-Changing Power Transformer (PWR-028)Item PWR-028

6/10/35/110 kV Tap-Changing Power Transformer

6/10/35/110kV级有载/无载调压电力变压器

Oil-immersed power transformer for 6, 10, 35 or 110 kV systems with on-load or off-circuit tap-changing configurations.

Project-specific configurationOnly sourced values are shown. GoEastAI confirms remaining parameters during technical review.
Request this equipment Ask a question

Manufacturing source: Baoding Zhongyi Electric Group Co., Ltd. — Supplier Profile

Equipment overview

Built around the confirmed duty

The official source lists on-load and off-circuit tap-changing power-transformer configurations across 6, 10, 35 and 110 kV voltage classes. It gives a capacity range of 2,000 to 50,000 kVA and describes automatic output-voltage adjustment for on-load regulating configurations.

Working principle

The transformer changes voltage through electromagnetic induction. A selected tap-changing arrangement adjusts the effective winding turns ratio either under load or during de-energized maintenance.

Power and transmission equipment selection is based on power or torque, speed, load profile, service factor, electrical supply, mounting, environment, efficiency and integration requirements.

Core features

  • On-load or off-circuit tapping options
  • Oil insulation and cooling
  • Configured for voltage regulation under the confirmed system duty
Technical parameters

Reference specification checklist

Use these common industrial selection fields to prepare the inquiry. They are not a manufacturer datasheet or guaranteed performance values.

Source-supported dataValues currently supported by supplied material
ParameterConfirmed valueBasis
Voltage classes6 / 10 / 35 / 110 kVOfficial product page
Capacity range2,000–50,000 kVAOfficial product page
Tap-changing optionsOn-load or off-circuitOfficial product page
Insulation and cooling mediumTransformer oilOfficial product page
Planning reference

Parameters to confirm before quotation

Final values remain subject to supplier technical review.

Swipe horizontally to view all parameter columns.

ParameterReference settingTypical unitSelection note
Rated power / torqueContinuous and peak dutykW / N·mInclude starting and overload requirement
Input / output speedProcess requirementr/minOperating range, ratio and direction as applicable
Electrical supplyDestination-specificV / Hz / phaseVoltage tolerance, starting and harmonic limits
Load profile and service factorRequired—Hours, starts, shock, inertia and reversing duty
Protection and environmentSite design basisIP / °CAmbient, altitude, dust, moisture and hazardous area
Mounting and shaft interfaceConfirm drawingmmFrame, flange, foot, shaft, key and coupling details
Efficiency / insulationProject targetIE class / classEfficiency, insulation, cooling and temperature rise
Control and monitoringLocal / VFD / plant integrated—Sensors, protection, communication and condition monitoring
Application and configuration

Build the inquiry around the real project

Use the product type as the starting point, then confirm service conditions, options, documentation and delivery requirements.

01

Typical applications

Utility substationsIndustrial power systemsGrid and large-facility distribution
02

Materials and options

  • Winding conductor, core, insulation and enclosure materials are confirmed for the selected design.
  • Corrosion protection and environmental protection level are selected for the installation site.
  • Voltage ratio, capacity, vector group, impedance and tapping arrangement to be confirmed.
  • Monitoring, protection, enclosure, cable interfaces and accessories to be confirmed.
03

Standards and documents

  • Applicable national, IEC and destination requirements are confirmed during technical review.
  • Routine, type and special test scope is agreed in the quotation.
  • Manufacturer and model confirmation
  • Technical datasheet and dimensional drawing
  • Inspection, certificates and manuals
Supply and support

Delivery, packing and after-sales

Final scope, responsibilities and timing are confirmed in the quotation.

04

Delivery

  • Manufacturing schedule, Incoterm and shipment scope are confirmed after technical review.
  • Final delivery timing depends on the confirmed rating, configuration, testing and destination.
05

Packing and shipping

  • Export packing and moisture protection are selected for the final dimensions and transport route.
  • Bushings, instruments, loose parts and document packs are protected and identified for shipment.
06

After-sales

  • Installation guidance, commissioning support and spare-parts scope are confirmed in the quotation.
  • Warranty conditions and response responsibilities are agreed before order placement.
